Voltage Standard Compatibility Guidelines for Different Countries

Voltage Standard Compatibility Guidelines for Different Countries

I. Global Voltage and Frequency Distribution

1. Three Major Voltage Regions
* High Voltage Region (220-240V): Covers Europe (Germany, France, UK, etc.), most Asian countries (China, India, South Korea), and Oceania (Australia, New Zealand). The frequency is uniformly 50Hz, with only a few countries exhibiting ±5% fluctuations (e.g., UK 230V, Malaysia 240V).
* Medium Voltage Region (100-127V): Represented by North America (USA 120V, Canada 120V) and Japan (100V). The frequency is mostly 60Hz, with a 50Hz/60Hz difference between the Kanto and Kansai regions of Japan.
* Dual Voltage Region (110V/220V): Brazil, Lebanon, Guyana, etc., use a dual voltage system. Industrial power is mostly 220V, while residential sockets are compatible with both voltages.

2. Key Impacts of Frequency Differences
* Global power frequencies are mainly divided into... There are two types of frequencies: 50Hz (Asia, Europe and Africa) and 60Hz (parts of the Americas, Japan and South Korea). Frequency mismatch can cause lighting equipment to flicker and transformers to overheat, which needs to be mitigated through frequency conversion technology.

II. Key Factors Affecting Voltage Adaptation

1. Photovoltaic Module Voltage Characteristics

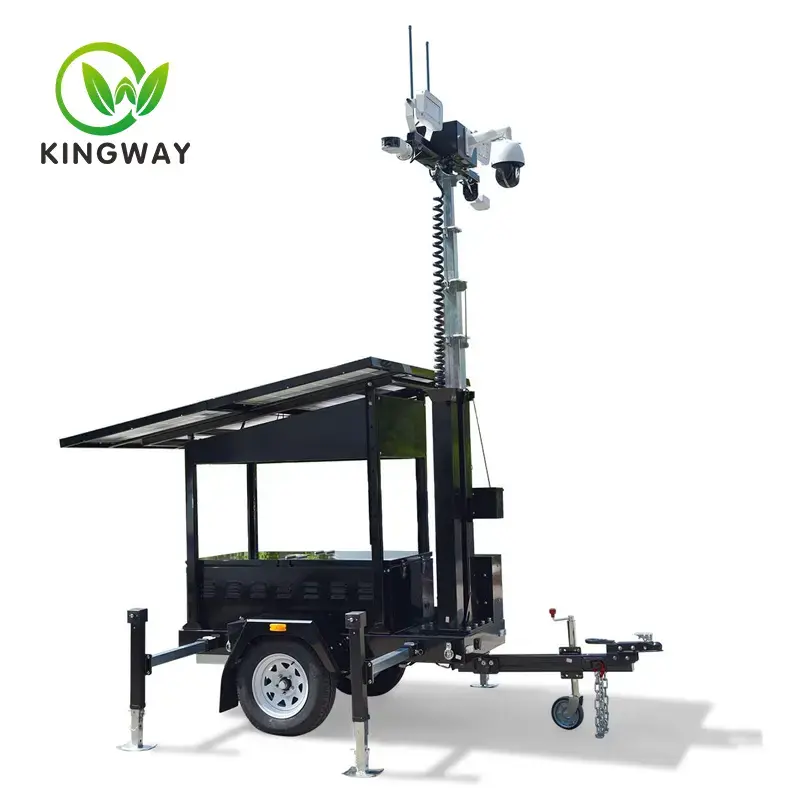

Solar-powered mobile lighting equipment relies on photovoltaic panels for power, requiring close attention to:
* Module open-circuit voltage range (typically 200V-1500V), needing to match the energy storage system's input threshold
* Voltage decay under low light conditions (voltage may drop below 200V in the early morning/on cloudy days)
* The impact of high-temperature environments on voltage stability (voltage decreases by approximately 0.3% for every 1°C increase in temperature)

2. Grid Connection Voltage Requirements
* Most countries allow voltage deviations of ±5% (e.g., EU 230V±11.5V)
* Differences in three-phase power standards in industrial scenarios (US 460V/60Hz, Malaysia 420V/50Hz)
* Tolerance to instantaneous voltage fluctuations (e.g., voltage drop due to motor startup)

III. Multi-Scenario Adaptation Technical Solutions

1. Hardware Adaptation System
* Wide-voltage energy storage converter: Select input voltage coverage String-type integrated photovoltaic (PV) generators (200V-1500V) dynamically adjust to adapt to different national power grids, increasing power generation by 8%-12%.
Smart Transformer: Employs an automatic voltage regulation module (110V/220V bidirectional switching), with a response time of <10ms, preventing damage from voltage surges.
Plug and Adapter Sets: Configured with corresponding plug types according to region (North America Type A/B, Europe Type C/E/F, UK Type G, Australia Type I).

2. Software Optimization Strategy
Embedded MPPT (Maximum Power Point Tracking) algorithm for real-time tracking of photovoltaic voltage peaks.
Frequency adaptive adjustment module, compatible with 50Hz/60Hz dual-frequency power grids.
Customizable overvoltage/undervoltage protection thresholds to adapt to different national electrical standards.

IV. Key Points for Safety and Compliance in Cross-border Use

1. Regional Certification Standards
North America: UL 498 plug certification, UL 943 leakage protection standard
EU: CE certification (compliant with EN 60309 industrial socket standard)
Asia: Japan PSE Mark, Korea KC Certification

Australia: AS/NZS 3112 Plug and Socket Standard

2. Special Environmental Voltage Limitations

Wet/Explosion-proof Scenarios: Lighting power supply voltage ≤12V (compliant with GB 50058-2014 standard)

Outdoor Mobile Equipment: Must have IP65 protection rating, voltage fluctuation tolerance increased to ±10%

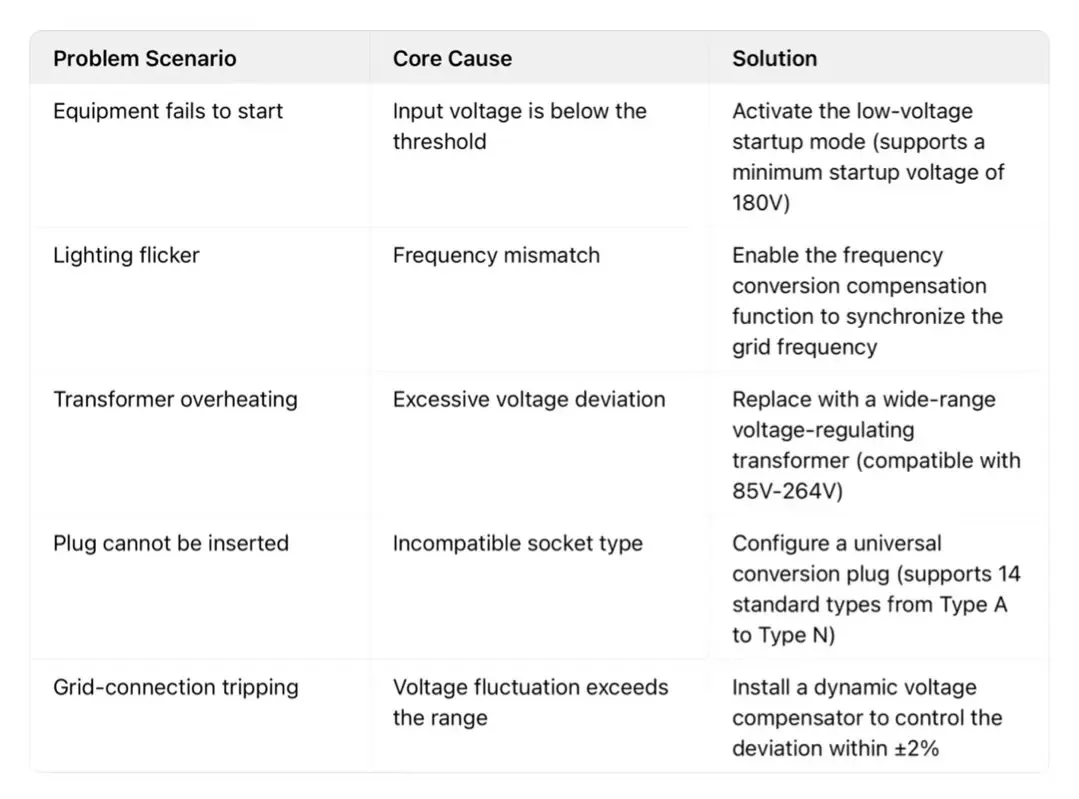

V. Solutions to Common Adaptation Issues
