Principle of the power system of mobile lighting tower

Principle of the power system of mobile Lighting Tower: providing light and power for night operations

In modern industry, construction, emergency rescue and outdoor activities, mobile lighting towers have become one of the indispensable equipment. It can provide powerful lighting support for various night operation scenes to ensure the smooth progress of work. One of the core of mobile lighting towers is its power system. An efficient and reliable power system is the key to the normal operation of mobile lighting towers.

1. Basic composition of the power system of mobile lighting towers
The power system of mobile lighting towers is mainly composed of the following key parts:

1. Engine
The engine is the power source of mobile lighting towers, usually diesel engines. For example, Perkins 403D-11G three-cylinder water-cooled diesel engine, equipped with a rated generator power of 7KW and a peak generator power of 8KW. This engine has the characteristics of high power, low fuel consumption and low noise. It can operate stably in harsh environments and provide continuous power support for lighting towers.

2. Generator
The function of the generator is to convert the mechanical energy generated by the engine into electrical energy to power lighting fixtures and other electrical equipment. The output power and voltage stability of the generator directly affect the lighting effect of the lighting tower and the service life of the equipment. Common generator power ranges from 6.2KW to 10KW, which can meet the lighting needs of different scales.
3. Hydraulic system
The hydraulic system is mainly used to control the lifting and rotation functions of the lighthouse. It transmits the power of the engine to the hydraulic cylinder through a hydraulic pump, thereby realizing the lifting and lowering of the light pole and the rotation of the lamp head. The advantage of the hydraulic system lies in its powerful power output and precise control ability, which can complete the lifting and lowering operation of the light pole in a short time and improve work efficiency.
4. Control system
The control system is the "brain" of the mobile lighting tower. It realizes centralized management and automatic control of the engine, generator, hydraulic system and lighting fixtures through various sensors and controllers. The control system can automatically adjust the light intensity according to the ambient light, or switch it on and off according to a preset schedule, which greatly improves the convenience and energy efficiency of the equipment.

2. Types of power systems for mobile lighting towers
According to different application scenarios and needs, the power systems of mobile lighting towers are mainly of the following types:
1. Diesel engine drive system
This is the most common type of power system, which uses a diesel engine as a power source and converts mechanical energy into electrical energy through a generator to power lighting fixtures and other equipment. The diesel engine drive system has the characteristics of high power, low fuel consumption and low noise, which is suitable for long-term continuous work and is widely used in construction sites, road construction, emergency rescue and other scenes.
2. Hydraulic drive system
The hydraulic drive system is mainly used for the lifting and lowering of the light pole and the rotation control of the lamp head. It transmits the power of the engine to the hydraulic cylinder through the hydraulic pump to achieve the rapid lifting and lowering of the light pole and the flexible rotation of the lamp head. The advantages of the hydraulic drive system are large power output, high control accuracy, and the ability to respond quickly to operating instructions and improve work efficiency.
3. Electric drive system
The electric drive system is usually used in small mobile lighting towers or application scenarios that require low noise and low emissions in specific environments. It powers the motor through a battery or an external power supply to drive the lifting and lowering of the light pole and the rotation of the lamp head. The advantages of the electric drive system are simple operation, low noise and environmental protection, but its endurance and power output are relatively limited, which is suitable for short-term and small-scale lighting needs.

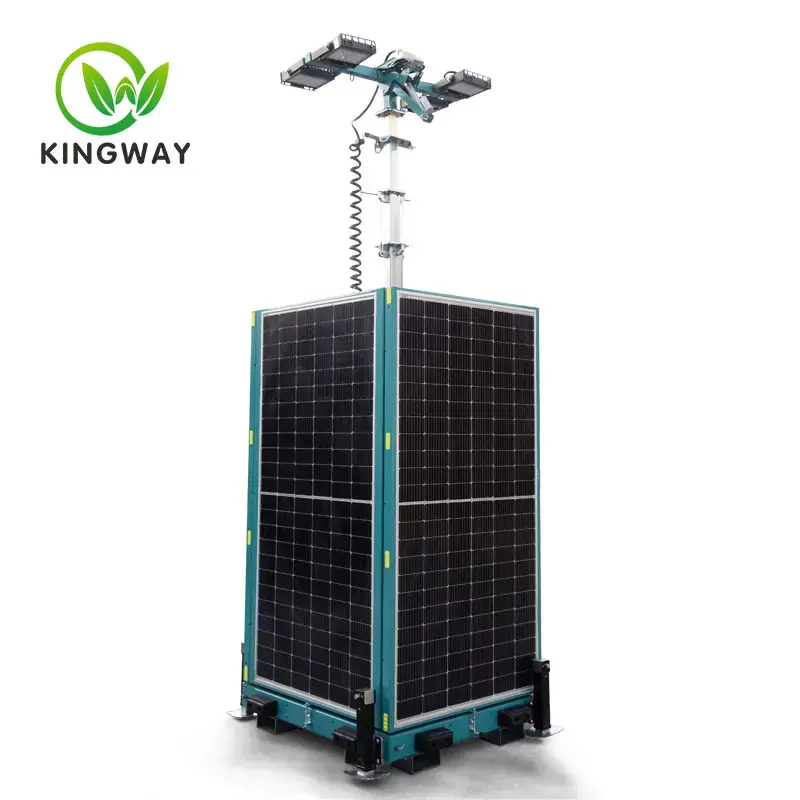

4. Solar drive system
The solar drive system is an environmentally friendly power solution that converts Solar Energy into electrical energy through solar panels, stores it in batteries, and powers lighting fixtures and other equipment. The advantages of the solar drive system are that it does not require an external power supply, can be used in areas without grid coverage, and has low operating costs and is environmentally friendly. However, its disadvantages are that it is greatly affected by weather and light conditions and has limited endurance.

3. Working principle of the mobile lighting tower power system
1. Collaborative work of the engine and the generator
After the engine is started, the rotor of the generator is driven to rotate through a belt or coupling, cutting the magnetic flux lines to generate induced electromotive force, thereby converting mechanical energy into electrical energy. The electrical energy generated by the generator is transmitted to lighting fixtures and other electrical equipment through cables to provide them with a stable power supply. At the same time, the generator is also equipped with a voltage regulator and a protection device to ensure the stability of the output voltage and the safe operation of the equipment.
2. Lifting and rotation control of the hydraulic system
The working principle of the hydraulic system is to convert the power of the engine into hydraulic energy through a hydraulic pump, and then realize the lifting and lowering of the lamp pole and the rotation of the lamp head through a hydraulic cylinder and a hydraulic motor. When the lamp pole needs to be raised, the hydraulic pump presses the hydraulic oil into the hydraulic cylinder, pushing the piston of the hydraulic cylinder upward, thereby driving the lamp pole to rise. Conversely, when the light pole needs to be lowered, the hydraulic oil in the hydraulic cylinder is released, the piston moves downward under the action of gravity, and the light pole drops accordingly. The rotation of the lamp head is achieved by the hydraulic motor driving the gear or sprocket. The operator can send instructions through the buttons on the control panel or the remote control to control the rotation angle and direction of the lamp head.
3. Intelligent management of the control system
The control system monitors the working status of the engine, generator, hydraulic system and lighting fixtures in real time through various sensors. For example, the temperature sensor can monitor the temperature of the engine and generator. When the temperature exceeds the set value, the control system will automatically start the cooling fan or issue an alarm; the oil pressure sensor can monitor the oil pressure of the hydraulic system to ensure the normal operation of the hydraulic cylinder and hydraulic motor. At the same time, the control system can also automatically adjust the light intensity according to the intensity of the ambient light, or switch it on and off according to a preset schedule. This intelligent management method not only improves the efficiency and safety of equipment use, but also greatly reduces the complexity and error rate of manual operation.

4. Advantages of the power system of mobile lighting towers
1. High efficiency
The power system of mobile lighting towers can respond quickly to operating instructions, realize the rapid lifting and lowering of the lamp pole and the flexible rotation of the lamp head. For example, the hydraulic drive system can raise the lamp pole to the highest height in a short time, greatly improving the efficiency of night operations.
2. Reliability
The power system of modern mobile lighting towers usually adopts advanced engines, generators and hydraulic systems, which are strictly tested for quality and reliability. At the same time, the control system is also equipped with a variety of protection devices, such as overload protection, short circuit protection, undervoltage protection, etc., which can effectively prevent equipment from malfunctioning during operation and ensure the stable operation of the equipment.
3. Environmental protection
With the improvement of environmental awareness, more and more mobile lighting towers have begun to adopt solar drive systems. Solar drive systems can not only reduce dependence on traditional energy and reduce operating costs, but also reduce the emission of harmful gases such as carbon dioxide, which is of great significance to environmental protection.
4. Adaptability
The power system of mobile lighting towers can be customized according to different application scenarios and needs. For example, in construction sites and road construction, diesel engine drive systems are usually used to meet the needs of long-term continuous work; while in some environments with high noise and emission requirements, such as stadiums or city squares, electric drive systems or solar drive systems are more suitable.

5. Development trend of mobile lighting tower power system

1. Intelligence and automation

In the future, the power system of mobile lighting towers will develop in a more intelligent and automated direction. The control system will integrate more advanced sensors and control algorithms to achieve remote monitoring, fault diagnosis and automatic repair of equipment. For example, through the Internet of Things technology, operators can remotely control the switching, lifting and rotation of mobile lighting towers through mobile phones or computers, and obtain real-time operating status information of the equipment.

2. Application of green energy

With the continuous development of green energy technology, clean energy such as solar energy and wind energy will be more widely used in the power system of mobile lighting towers. The solar drive system will continue to improve the conversion efficiency and reduce costs, making it economically feasible in more scenarios. At the same time, wind energy drive systems are also likely to become a development direction for mobile lighting towers in the future, especially in some areas with rich wind resources.
3. High power and long battery life
In order to meet the lighting needs of large-scale projects and complex environments, the power system of mobile lighting towers will develop in the direction of high power and long battery life. The power of the engine and generator will be further improved, and the battery life of the equipment will be extended by optimizing the fuel system and adopting efficient energy-saving technologies.
4. Miniaturization and portability
In some special application scenarios, such as emergency rescue and outdoor adventures, miniaturized and portable mobile lighting towers will have greater market demand. The power system will reduce the size and weight of the equipment without reducing performance by adopting lightweight materials and compact design, and improve its portability and flexibility.

6. Case analysis: Application of mobile lighting towers at a large construction site
1. Project background
During the night construction process, a large construction site needs strong lighting support to ensure construction safety and progress. Traditional fixed lighting equipment cannot meet the complex and changing lighting needs of the construction site, so it is decided to use mobile lighting towers as the main night lighting equipment.
2. Equipment selection
After comparative analysis, the construction site chose a mobile lighting tower equipped with a Perkins 403D-11G three-cylinder water-cooled diesel engine. The equipment has a rated generator power of 7KW and a peak generator power of 8KW, which can meet the power demand of large lighting fixtures and other electrical equipment on the construction site. At the same time, its hydraulic system can raise the light pole to a height of 12 meters in a short time, covering a large area of the construction area.
3. Application effect
After the mobile lighting tower was put into use on the construction site, it greatly improved the efficiency and safety of night construction. Its powerful lighting ability enables construction workers to work in a clear field of vision, reducing construction accidents caused by insufficient light. At the same time, the reliability and low noise performance of the equipment have also been highly praised by site managers and construction workers. During the months-long construction process, the mobile lighting tower has always maintained stable operation, providing a strong guarantee for the night construction of the construction site.
4. Experience summary
It can be seen from this case that the power system of the mobile lighting tower has played an important role in the application of large-scale construction sites. Its high power, high efficiency and high reliability enable it to meet the lighting needs in complex environments. At the same time, the reasonable selection of power system type and equipment parameters is crucial to ensure the performance and service life of the equipment.

7. Maintenance and care of the power system of mobile lighting towers
In order to ensure the long-term and stable operation of the power system of mobile lighting towers, regular maintenance and care are essential. The following are some common maintenance and care measures:
1. Engine maintenance
Regularly check the engine oil level and oil quality, and replace the oil and oil filter in time to keep the engine well lubricated.
Check the engine coolant level and the working condition of the cooling system to ensure that the engine runs within the normal temperature range.
Clean the engine air filter regularly to prevent dust and impurities from entering the engine cylinder and affecting the performance and life of the engine.
Check the engine's fuel system, including components such as the fuel pump, fuel filter and fuel injector, to ensure that the fuel supply is unobstructed.
2. Generator maintenance
Regularly check the wear of the brushes and slip rings of the generator, and replace the severely worn brushes in time to ensure the normal power generation of the generator.
Check whether the wiring terminals of the generator are loose or corroded to ensure that the output voltage of the generator is stable and reliable.
Clean and maintain the generator regularly to prevent dust and debris from entering the generator and affecting its heat dissipation and performance.
3. Maintenance of the hydraulic system
Regularly check the oil level and oil quality of the hydraulic oil, and replace the hydraulic oil and hydraulic filter in time to keep the hydraulic system clean and operating normally.
Check whether the seals of the hydraulic system are aging or damaged, and replace the damaged seals in time to prevent hydraulic oil leakage.
Regularly perform pressure tests on the hydraulic system to check whether the working pressure of the hydraulic pump, hydraulic cylinder and hydraulic motor is normal to ensure the power output and control accuracy of the hydraulic system.
4. Maintenance of the control system
Regularly check the working status of the sensors and controllers of the control system to ensure that they can accurately monitor and control the operation of the equipment.
Check whether the electrical circuits of the control system are loose or aging, and repair the damaged circuits in time to prevent short circuits or circuit breakers.
Regularly upgrade the software of the control system to obtain the latest functions and performance optimization.

8. Future Challenges of Power Systems for Mobile Lighting Towers
Although the power systems for mobile lighting towers have made great technological progress, they still face some challenges in future development:
1. Increased environmental protection requirements
As the world pays more and more attention to environmental protection, governments have introduced strict emission standards. The power systems for mobile lighting towers need to further reduce exhaust emissions and reduce pollution to the environment. This will prompt engine manufacturers and equipment manufacturers to increase their research and development efforts in green energy technology and low-emission technology.
2. Improvement of energy efficiency
Against the backdrop of increasingly tight Energy Resources, improving the energy efficiency of mobile lighting tower power systems has become an important topic. This requires not only optimizing the design of engines and generators, but also adopting more efficient energy-saving technologies in hydraulic systems and control systems to reduce energy waste and reduce operating costs.
3. Integration of intelligent technologies
With the rapid development of emerging technologies such as the Internet of Things, big data, and artificial intelligence, the power systems for mobile lighting towers need to be better integrated with these technologies. How to achieve remote monitoring, fault diagnosis, and automatic repair of equipment, and how to optimize the operating efficiency of equipment through intelligent control algorithms will be the focus of future research and development.
4. Development of multi-energy hybrid power systems
In the future, the power system of mobile lighting towers may develop in the direction of multi-energy hybrid power. For example, diesel engines can be combined with green energy equipment such as solar panels and wind turbines to form a more efficient and environmentally friendly power solution. This hybrid power system needs to solve the matching and coordination problems between different energy sources to achieve optimal performance and energy efficiency.

9. Market prospects of mobile lighting tower power systems
With the rapid development of the global economy and the acceleration of urbanization, the market demand for mobile lighting towers will continue to grow. Especially in the fields of construction, transportation, mining, emergency rescue, etc., the frequency and scale of night operations are increasing, and the demand for efficient, reliable and environmentally friendly mobile lighting equipment is becoming increasingly urgent.
From the market trend, the power system of mobile lighting towers in the future will pay more attention to the application of green energy and the integration of intelligent technology. Solar drive systems and electric drive systems will be promoted in more application scenarios, while diesel engine drive systems will develop in the direction of more efficiency and low emissions. At the same time, with the popularization of Internet of Things technology, the power system of mobile lighting towers will realize real-time information interaction with equipment manufacturers, users and maintenance personnel, and improve the management efficiency and service quality of equipment.
In the international market, developed countries such as Europe and the United States have put forward higher environmental protection and intelligent requirements for the power system of mobile lighting towers, which will prompt equipment manufacturers to increase their investment in technology research and development and product innovation. In emerging markets such as Asia, Africa and South America, with the acceleration of infrastructure construction and the advancement of industrialization, the market demand for mobile lighting towers will show a rapid growth trend. Users in these regions pay more attention to the cost-effectiveness and reliability of equipment, so diesel engine drive systems and hydraulic drive systems will still dominate.

10. Conclusion
The power system of mobile lighting towers is the core part of its normal operation. Its working principle, type, advantages and future development trends have an important impact on the performance and application scope of mobile lighting towers. By deeply understanding the composition and working principle of the power system, users can better choose mobile lighting towers that suit their needs, and extend the service life of the equipment through reasonable maintenance and maintenance measures. In the future, with the continuous advancement of technology and changes in market demand, the power system of mobile lighting towers will develop in the direction of intelligence, greenness and efficiency, providing brighter and more reliable power support for night operations.
In the market of mobile lighting towers, international wholesale buyers play an important role. They need to understand the latest technical dynamics and market trends of power systems in order to provide customers with more competitive products and services. At the same time, equipment manufacturers also need to work closely with international wholesale buyers to jointly promote the innovation of mobile lighting tower technology and the development of the market. By continuously optimizing the design and performance of the power system and improving the quality and reliability of the product, mobile lighting towers will play a more important role in future night operations and make greater contributions to global economic development and social progress.
