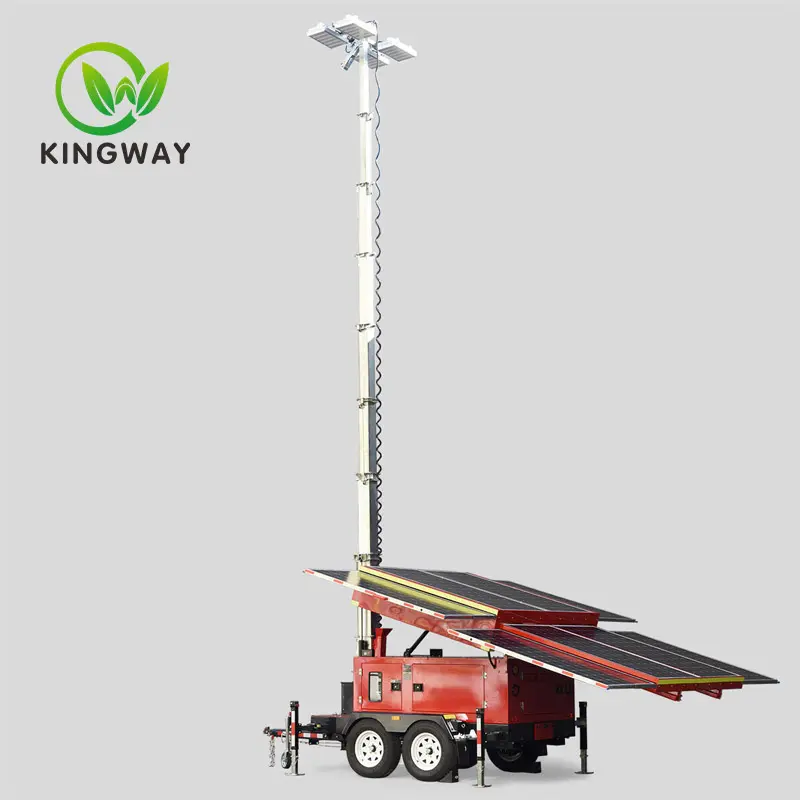

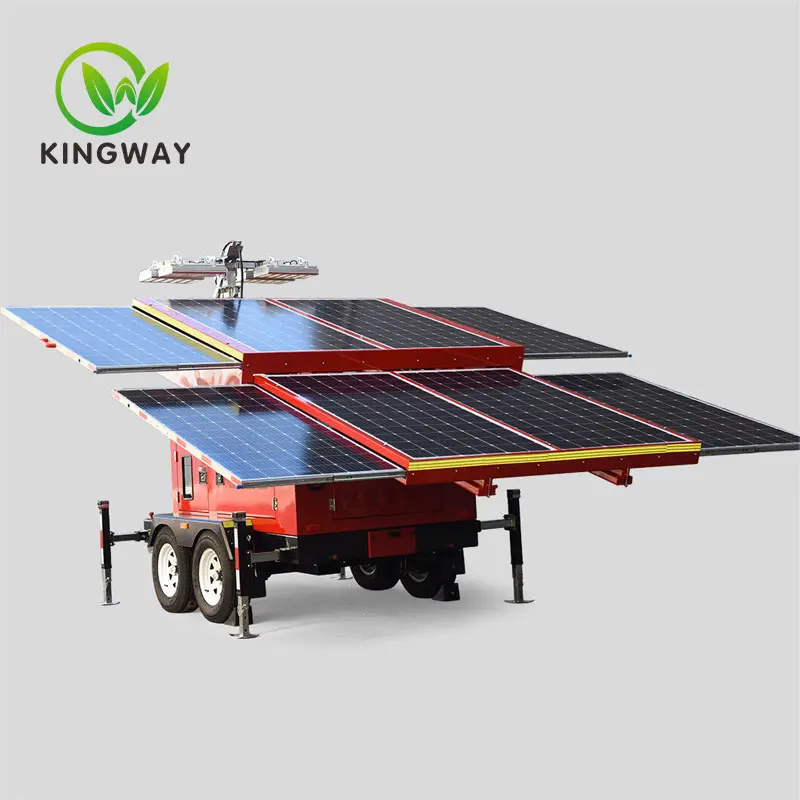

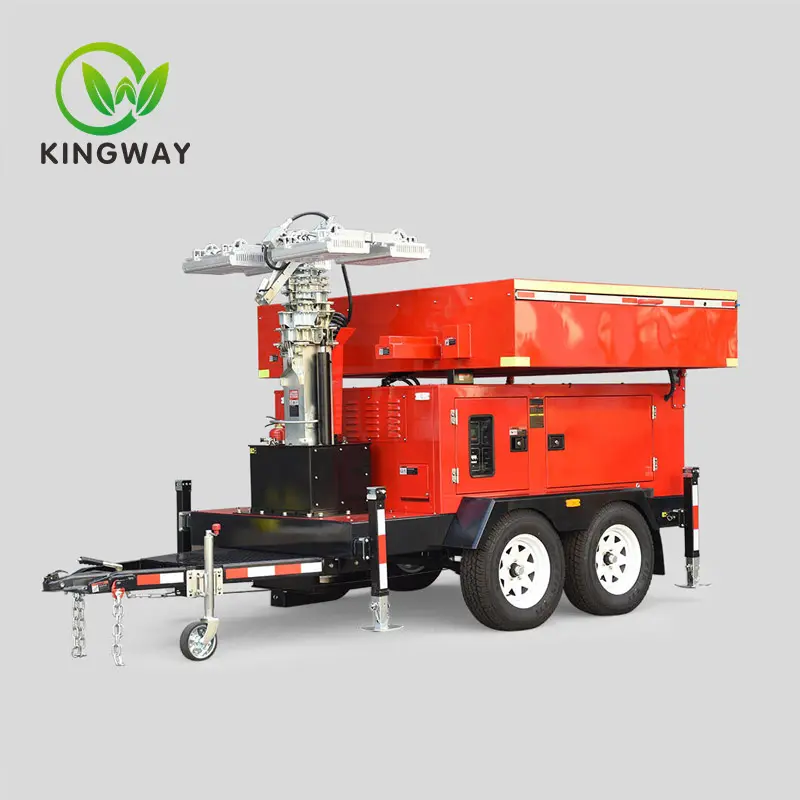

Model KWST-2400L 3680W solar panel 9M larger capacity LED mobile solar light tower
Product Introduction
● With 4pcs 400w led lamps. Light IP67.
● Have 240000 Lums
● Fully adjustable high-efficiency light fixtures.
● 0 pollution, 0 emissions,0 noise,no fuel cost,no after-sales service required
● Silent Operation
● Combination hitch for 50mm ball or 70mm ring
● Trailer have complex tail light.
● Have international standard VIN number, can be driven on the road.
● License plate holder with light.
● Batteries can use Gel or LFP batteries
● Can add backup power, such as 3kw generator
● Can add wind turbine for option.
● Have 240000 Lums
● Fully adjustable high-efficiency light fixtures.
● 0 pollution, 0 emissions,0 noise,no fuel cost,no after-sales service required
● Silent Operation
● Combination hitch for 50mm ball or 70mm ring
● Trailer have complex tail light.
● Have international standard VIN number, can be driven on the road.
● License plate holder with light.
● Batteries can use Gel or LFP batteries
● Can add backup power, such as 3kw generator
● Can add wind turbine for option.
TECHNICAL SPECIFICATIONS
|
Model |
KWST-1800G |
|
Place of Origin: |
China |
|
Brand |
Kingway |
|
Solar Panel |
8 × 460W |
|
GEL/LFP Battery |
16 x 200Ah DC12V |
|
Battery Capacity |
38400Wh 80% DoC |
|
System Voltage |
DC48V |
|
LED lamp |
4x400w,240000lums |
|
Light areas(5lux) |
3887m³ |
|
Rotation |
350° electric |
|
Tilt |
90° electric |
|
Controller |
MPPT |
|
Mast & Height |
7m |
|
Mast lifting |
Hydraulic |
|
Trailer Standard |
US/AU/EU |
|
Hitch |
2''Ball/3''Ring |
|
Brake |
Mechanical |
|
Axle |
Single |
|
Tire |
15 inch |
|
Outriggers |
4x |
|
LiftingRing |
4x |
|
ForkliftHoles |
2x |
|
Charging Time |
8.8 Hours |
|
Running Time |
19.2 Hours |
|
Dimension(mm) |
4150*2250*2800 |
|
Weight |
2400kg |
|
Qty 20’/40’ |
2units/4units |
Options:
● Tower lift:
• Manual winch
• Electric lift
• Hydraulic lift
● Height:
• 4.5m
• 6m
• 7m
• 9m
● Standby power: Genset for standby
• 3kw gas generator with EPA
• 3kw diesel generator set
• 5kw diesel generator set
• Etc
● Standby power: Wind Turbine
● Device
• LED light
• Camera
• Speaker
• WIFI
● Socket
• Input socket
• Output socket
• Manual winch
• Electric lift
• Hydraulic lift
● Height:
• 4.5m
• 6m
• 7m
• 9m
● Standby power: Genset for standby
• 3kw gas generator with EPA
• 3kw diesel generator set
• 5kw diesel generator set
• Etc
● Standby power: Wind Turbine
● Device
• LED light
• Camera
• Speaker
• WIFI
● Socket
• Input socket
• Output socket
Product features:
● Compact, robust, easy to use and suitable to work in any environment, KINGWAY LIGHT TOWERS with integrated power generator are the best answer when in need of a temporary light source.
● Studied, designed and customized based on the needs of our customers, the movable lighting units are made entirely in our production plant, following the KINGWAY quality standards and using only highly reliable materials.
● The installation location is fixed and is usually used in places that require long-term lighting, such as parking lots, etc. Fixed light tower are usually stronger than mobile light tower, can withstand higher winds and vibrations, and have better stability.
● Studied, designed and customized based on the needs of our customers, the movable lighting units are made entirely in our production plant, following the KINGWAY quality standards and using only highly reliable materials.
● The installation location is fixed and is usually used in places that require long-term lighting, such as parking lots, etc. Fixed light tower are usually stronger than mobile light tower, can withstand higher winds and vibrations, and have better stability.
Product Applications
Construction sites,Parking lots and outdoor spaces,Roadworks and maintenance,Mining and remote locations,emergency place,entertainment venues, outdoor lighting, party, residential area lighting
Ready to find the perfect lighting tower for your project? Contact us today to discuss your specific requirements and explore our tailored solutions!
