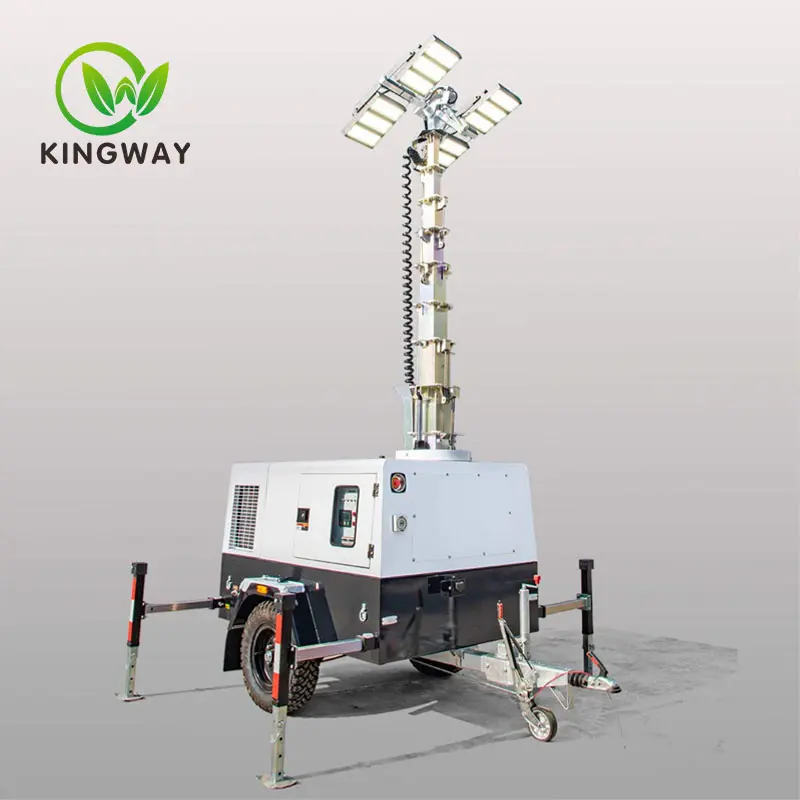

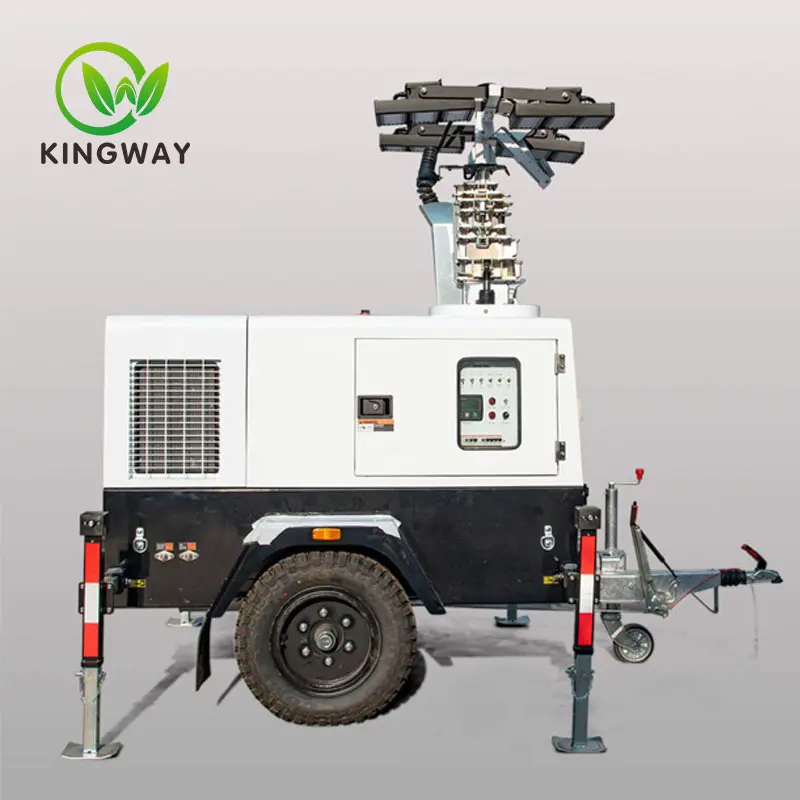

KWGT-7000PLED L Hydraulic LED lighting tower
Product Introduction
● 30-foot(9m) telescoping tower rotates 360 degrees.

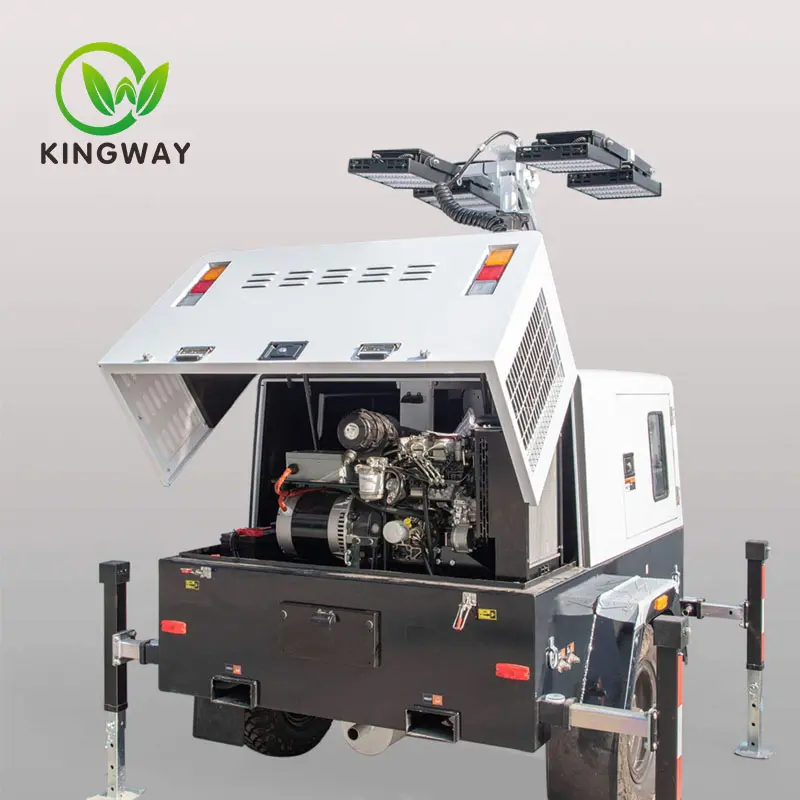

● Flip-top design, easier to maintain.
● The canopy have high-quality sound-absorbing sponge to reduce noise.
● Use Perkins engine.
● Use Mecc Alte alternator .
● 4X500W LED, 210000lm.
● Have output socket,can be used for other devices such as fans.
● Use good quality powder-coat.
● Trailer have complex tail light.
● Have international standard VIN number, can be driven on the road.
● License plate holder with light.
TECHNICAL SPECIFICATIONS
|
Model |
KWGT-7000PLED |
|
Place of Origin: |
China |
|
Brand |
Kingway |
|
Genset rated power |
7kw |
|
Height extended fully |
9m |
|
Dimension |
3000x1538x2800mm |
|
Gross weight |
1350kg |
|
Engine |
|
|
Model |
Perkins |
|
Rated speed (rpm) |
1500/1800 |
|
Cylinder No. |
3 |
|
Engine type |
4 stroke, water-cooled, naturally aspirated |
|
Emission |
Tier 3 |
|
Alternator |
|
|
Model |
MeccAlte |
|
Rated speed (hz) |
50/60 |
|
Rated voltage |
230V (50HZ), 240(60HZ) AC |
|
Insulation class |
Class H |
|
Protection grade |
IP23 |
|
Mast and light |
|
|
Light type |
LED |
|
Luminous Flux |
210000 LM |
|
Light |
4 x 500W |
|
Mast Lifting Method |
Hydraulic |
|
Mast Rotation |
Electric motor 360 degrees |
|
Light Rotation |
Electric |
|
Trailer |
|
|
Stabilizing Leg |
Leaf spring with mechanical breaker |
|
Towing Bar |
Foldable Tow bar with Jockey wheel |
|
Stabilizing Leg |
4Pcs manual Stabilizing Leg |
|
Rim & Tyre |
14" |
|
Other Item |
|
|
Fuel Tank capacity |
100L |
|
Operating hours |
80 Hrs |
|
Control panel |
Digital controller |
|
Max. Loading Qty by 40HQ |
7 |
